UVGL-48 Portable UV Lamp, Multiple SW/LW, 6W, 12V
Item Code: 95-0010-02
Portable UV Lamps (six watts)
are lightweight, durable plastic lamps, excellent for field use. Lamps
are available with longwave, shortwave or split-tube longwave/shortwave
combination.
Applications
- Lapidary
- Field Inspection
Main Features
- Portable six-watt UV lamp
- Select from longwave, shortwave or split-tube longwave/shortwave combination
- Split tube model includes a sliding plate for selecting either the longwave or shortwave
- Distinctive wraparound lamp handle that comfortably balances the lamp in your hand
- Mini built-in flashlight is included
- Lamp is operated by either standard or rechargeable 6-volt batteries (two required, order separately)
- The optional battery charger (12V float battery charger) for use with the rechargeable batteries
Specifications
UV Source:
|
365nm, 254nm or split tube 254/365nm
|
Watts:
|
Six
|
Dimensions:
|
9.5L x 2.8W x 9.4H in. (241 x 71 x 238mm)
Weight: 4 lb. (.8 kg)
|
Options
- UV blocking eyewear
- Optional rechargeable 6V batteries and charger are available
| Part Numbers |
| 115V |
Model |
Description |
Replacement
Tubes |
Replacement Filter |
| 95-0011-01 |
ML-49 |
Portable UV Lamp, 365nm |
34-0016-01 |
|
| 95-0009-02 |

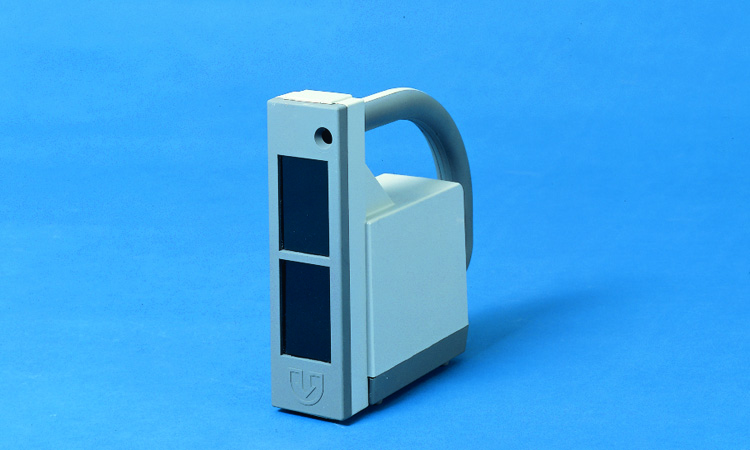

UVG-47 |
Portable UV Lamp, 254nm |
34-0013-01 |
98-0009-04 |
| 95-0010-02 |
UVGL-48* |
Portable UV Lamp, 254nm/LW 365nm
* Multi-band split tube lamp. |
34-0015-01 |
98-0010-04 |
| 34-0014-01 |
Bulb, White |
| 45-0005-01 |
Battery 6V |
| 45-0005-02 |
Rechargeable Battery 6V |
| 58-0136-01 |
Charger |
